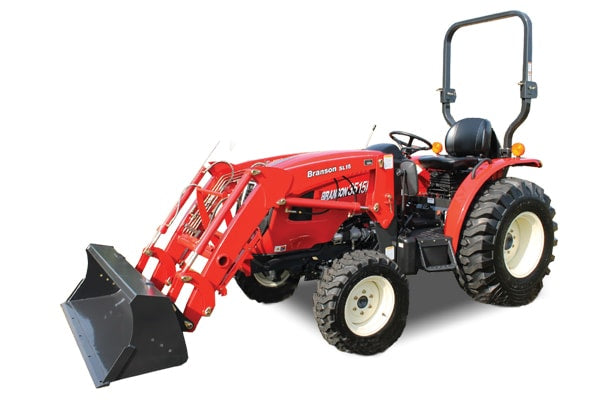

Branson 3515H Compact Tractor

Compact Design with multiple Horsepower Options: 30, 35, 40, and 48
3 Range/4 Speed with Shuttle Transmissions
Hydro-Max with Auto Throttle Acceleration
High Capacity Loader with Skid Steer Attach Bucket (standard) 2200 lb Capacity at Full Height of 104 inches

Specifications

ENGINE

Engine Model	Branson A1700N2 IDI
Aspiration	Natural
Emissions Standards	Tier 4
Engine Gross Power	35 hp (26.2 kW)
PTO Power	30 hp (22.5 kW)
No. of Cylinders	3
Displacement	104.5 cu.in (1,714 cc)
Rated Revolution	2600 RPM
Fuel Tank Capacity	7.1 gal (27 L)
Air Cleaner	Dry Element
Alternator – 12 Volt amp	50

DRIVETRAIN

Transmission	hst
Forward/Reverse Method	hst
4 Wheel Drive	2WD/4WD
No. of Traveling Speeds	3 range
Forward Traveling Speed	18.7 mph (30.2 km/h)
Reverse Traveling Speed	18.7 mph (30.2 km/h)
Clutch	No
Brake	Wet, Multi-disc
Differential Lock	STD
Cruise Control	Standard

HYDRAULICS

Steering	Hydrostatic Power Steering
Total Hydraulic Flow (POWER STEERING+Implement)	12.3 (4.3+8) gpm/ 46.8 (16.4+30.4) lpm
Lift Control Type	Position
Joystick Valve	N/A
Rear Remote (Port)	Optional (Up to 4)

3 POINT HITCH

3 Point Hitch	CAT I
Lift capacity at lift link ends	3,306 lbs (1,500 kg)
3Point Hitch Lift Capacity @24″ behind lift point	2,425 lbs (1,100 kg)

PTO

Rear (Mid) PTO Speed	560 RPM
Rear PTO Type	Independent
Clutch	Wet, Multi-disc

TIRES

AG Front	8-16
AG Rear	12.4-24
Turf Front	–
AG Rear	–
Ind. Front	28×8.50-15
AG Rear	43×16.00-20

DIMENSIONS

Wheelbase	65.7 in (1,670 mm)
Overall Length (W/ 3PT)	120.9 (3,071 mm)
Min. Overall Width	56.3 in (1,430 mm)
Overall Height (W/ ROPS)	97.3 in (2,471 mm)
Ground Clearance (4WD)	14.4 in (366 mm)
Min. Turning Radius (W/ Brake)	7.51 in (2.29 mm)
Weight (W/O Front Weights)	3,163 lbs (1,435 kg)

SKU:3515HTL
